Gas Regulators & Fittings

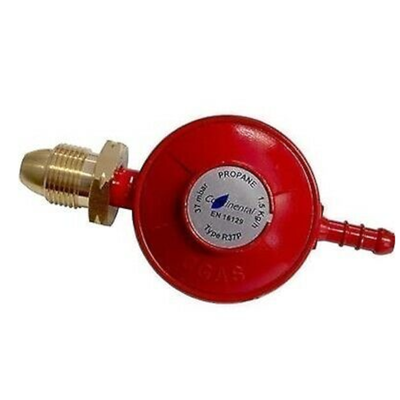

Standard Propane Regulator

• Capacity 1.5kg/hr
• Max Inlet pressure 20bar
  Operating pressure 37 mbar
• Inlet Male UK Pol 5/8" BSP LH
• Nozzle outlet to suit 8mm ID hose
• To En16129 standard

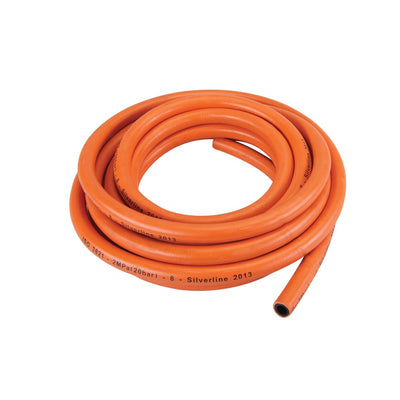

8mm Hose - EN16436

• 15mm outside diameter orange high pressure
• Made to BS 3212:1991 Type 2.
• Maximum working pressure of 17.5 bar (257 p.s.i.).
• For LPG

Lifestyle Triple boiling ring

• 9.2kw; Dim: 42 x 32.5 x 20cm
• Cast Iron with Brass Valve
• 3 Burner ring
• Dim: Burner 20cm
• Capacity:    9.2kw

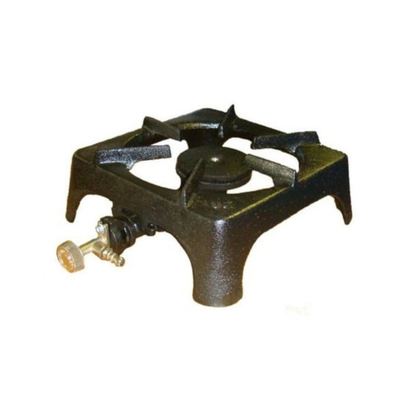

Boiling Ring - Single

• Frame Dimensions: Length 240mm x Width 240mm x Height 90mm
• Suitable for Propane and Butane
• Output: 8530 Btu/hr, 2.5 kw/hr2
• Burner Diameter: 89mm
• Vessel Capacities:- Diameter - 300 mm (max); Height – 180 mm (max)

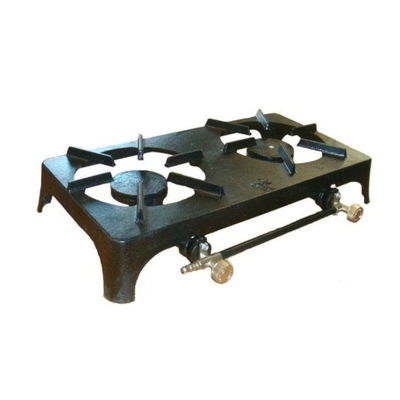

Boiling Ring - Double

• Double cast iron burner
• Ideal for Camping, Catering, Fishing and general outdoor use.
• Suitable for LPG - Butane and Propane
• Nominal Capacity is 5KW
• Burner Diameter: 89mm

Boiling Ring - Large

• Output: 18186Btu 5.33 kilowatts
• Burner Size: 180mm x 470mm x 160mm
• Frame Size: Length 390mm x Width 390mm x Height 175mm

Propane Compact Regulator (Patio Gas)

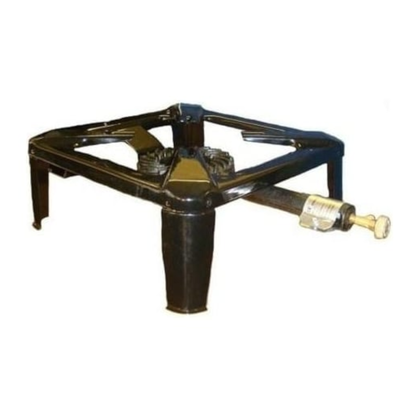

1 Burner Pressed Steel 5.8kw

• 5.8 kW output
• Pressed steel
• Single ring
• Brass valve
• Size: Burner 17cm x 38(W) x 38(D)

2 Burner Cast Iron 9kw

• 6.0 kW output
• Cast iron boiling ring
• 2 Burner ring
• Brass valve
• Size: Burner 18cm x 40.5(W) x 8.5(D) x 39(H)

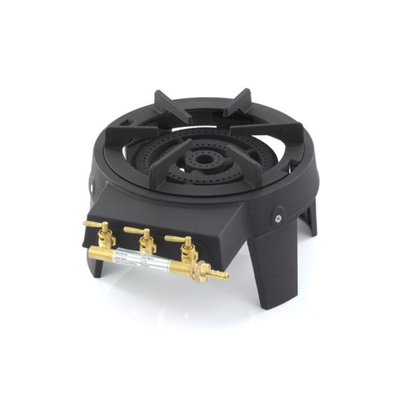

3 Burner Cast Iron 9kw

• 9.2 kW output
• Cast iron boiling ring
• 3 Burner ring
• Brass valve
• Size: Burner 20cm x 42(W) x 32.5(D)
